The software created/provided by us introduced on this page can be used in Windows and Linux 32bit/64bit environments. Due to the transition to subscription service from March 18, 2021, mqpgf/mqpcf that can be downloaded from this page has an expiration date of up to 3 months.(It will be updated regularly before the expiration date). If you purchase the subscription, the expiration date(minimum 1 year) is set according to the contract details, and you can receive technical support for use. In order to use the paid version of Windows and Linux, an annual subscription is required for each machine, but if you use the client mode, you can connect from the installed machine to an unlimited number of queue managers on other machines. The HPE NonStop edition(running on NonStop-i and NonStop-X) will be available for a fee from May 2020.
In addition, these tools have a proven track record of compiling and operating on SunOS, HP-UX, Linux ppc64, and AIX.(For details, please download the manual of each program and check it.)
If you would like to purchase a subscription or use it on a platform/OS other than Windows or Linux, please contact us here.


* "Practical mastering IBM MQ basics" using mqpgf/mqpcf is being serialized. Please take a look.

Download Software and Documentsmore

2023-03-30
mqutils31.zip expires=2024.03.30
mqpgf V1.4.2.10, mqpcf V1.4.0.12,
mqjfx V1.1.0.0, mqfvt V1.3.0.1, mdbfvt V1.2.0.0,
Performance test scripts(Windows V1.0.0.2, Linux V1.0.0.1)

Description more

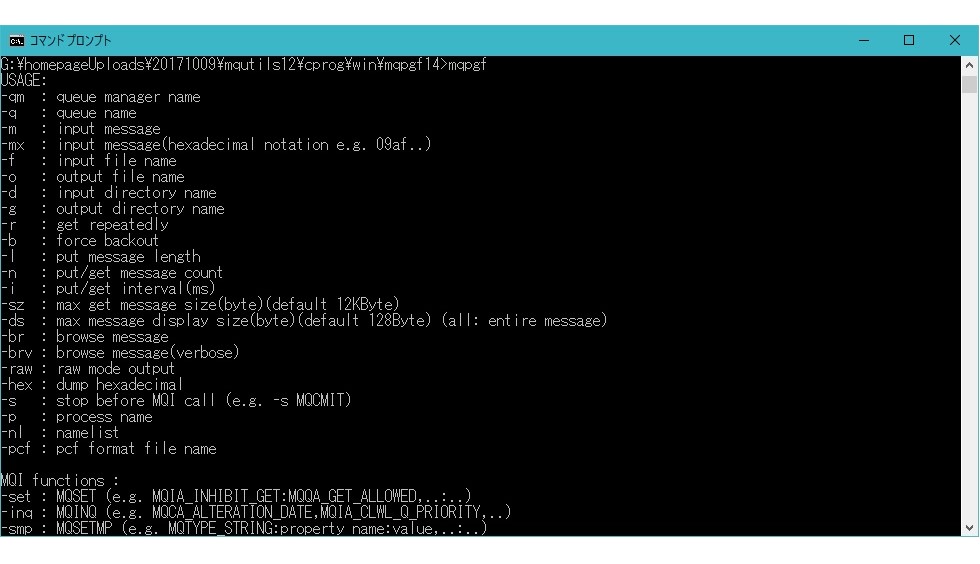

mqpgf
MQI Test Program
This program is created for the purpose of verifying/confirming the functions/usage of WebSpher MQ/IBM MQ and MQI, which is the API provided by it. (MQI uses libraries for C language.) Although detailed functional verification is possible, it may be necessary to specify many options and constants in order to execute one operation. This program can be used in any process from the project design process to the system operation stage. However, you need to understand more about the features of MQI.

mqpgf User's Guide

"Practical mastering IBM MQ basics" using this program is also being serialized.

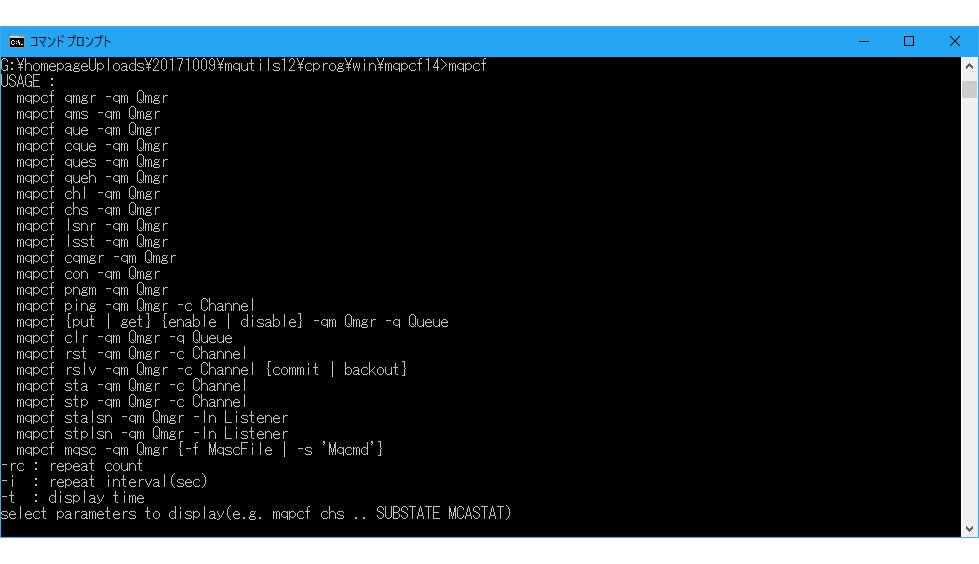

mqpcf
MQAI program
This program executes management tasks on the queue manager by communicating with the command server using the MQAI C language library, which is a API provided by WebSpher MQ/IBM MQ. By using it together with the mqpgf command, it is possible to verify/confirm the detailed functions of MQ. This program can be used in any process from the project design process to the system operation stage.

mqpcf User's Guide

"Practical mastering IBM MQ basics" using this program is also being serialized.

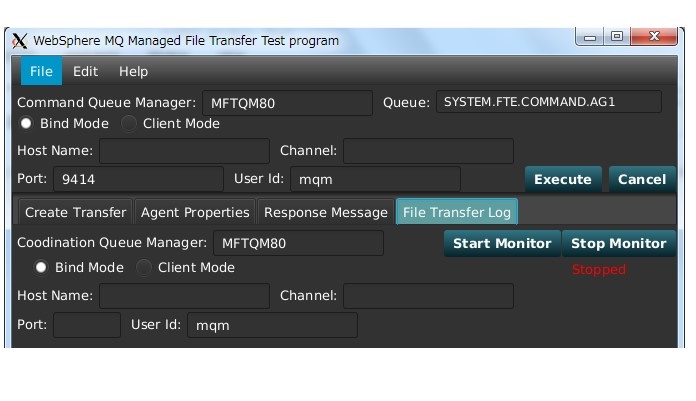

mqjfx
MQMFT CreateTransfer GUI
This program executes the same function on the Java GUI as the fteCreateTransfer(create new file transfer) command provided by IBM MQ Managed File Transfer. Creates a transfer request XML, sends it to the command queue on the command queue manager, and receives a response message. It also has the following additional functions.
  • You can subscribe the transfer log from the agent queue manager and check the result on the GUI.
  • You can save/load the connection parameters to the command queue manager and agent queue manager.
  • Transfer parameters can be saved/loaded.
  • Transfer request XML file output is possible.
  • Some information of Agent Properties of Source/Destination Agent can be specified from GUI.
  • It is possible to specify the transfer definition file when requesting transfer. (Also possible with fteCreateTransfer)
  • You can receive a response message including a confirmation response of transfer completion and confirm its contents on the GUI.

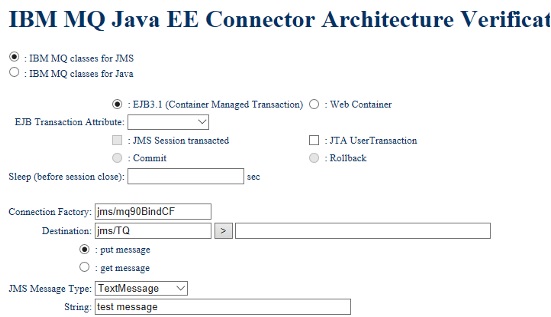

mqfvt
IBM MQ JCA Test Program
This program is created for the purpose of verifying/confirming the outbound function/usage of WebSphere MQ/IBM MQ and its provided MQ resource adapter.(Use mdbfvt (MDB validation program) to validate inbound(MDB) functionality.) You can choose from the various variations below to run your tests.
Two APIs, IBM MQ classes for JMS and IBM MQ classes for Java, provided by the MQ Resource Adapter, JTA User Transaction, EJB3.1(local), Web Container, JMS Session transacted/non-transacted, and EJB container-managed transaction can specify default(Required), NotSupported, Supports, Required, RequiresNew, Mandatory, Never.

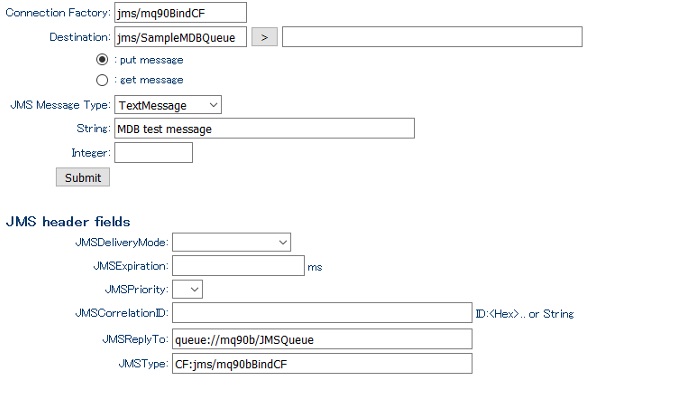

mdbfvt
IBM MQ JCA MDB Test Program
This program is created for the purpose of verifying/confirming the inbound(MDB) function/usage of WebSphere MQ/IBM MQ and its provided MQ resource adapter.(Use mqfvt(MQRA verification program) to verify outbound functionality.) The following verifications can be performed.
EJB3.1(local) container-managed transaction, activation spec, Receiving JMS Message Type: TextMessage/MapMessage/ObjectMessage/StreamMessage/ByteMessage.
